Within the humanoid robot supply chain the perspective on CNC machining has evolved far beyond simple part manufacturing. The current industry consensus is that custom machining is not just cutting material but rather the pre-emptive control of integration risks for complex systems. What clients truly need is a reliable partner who can find the balance between extreme lightweighting and high structural strength.

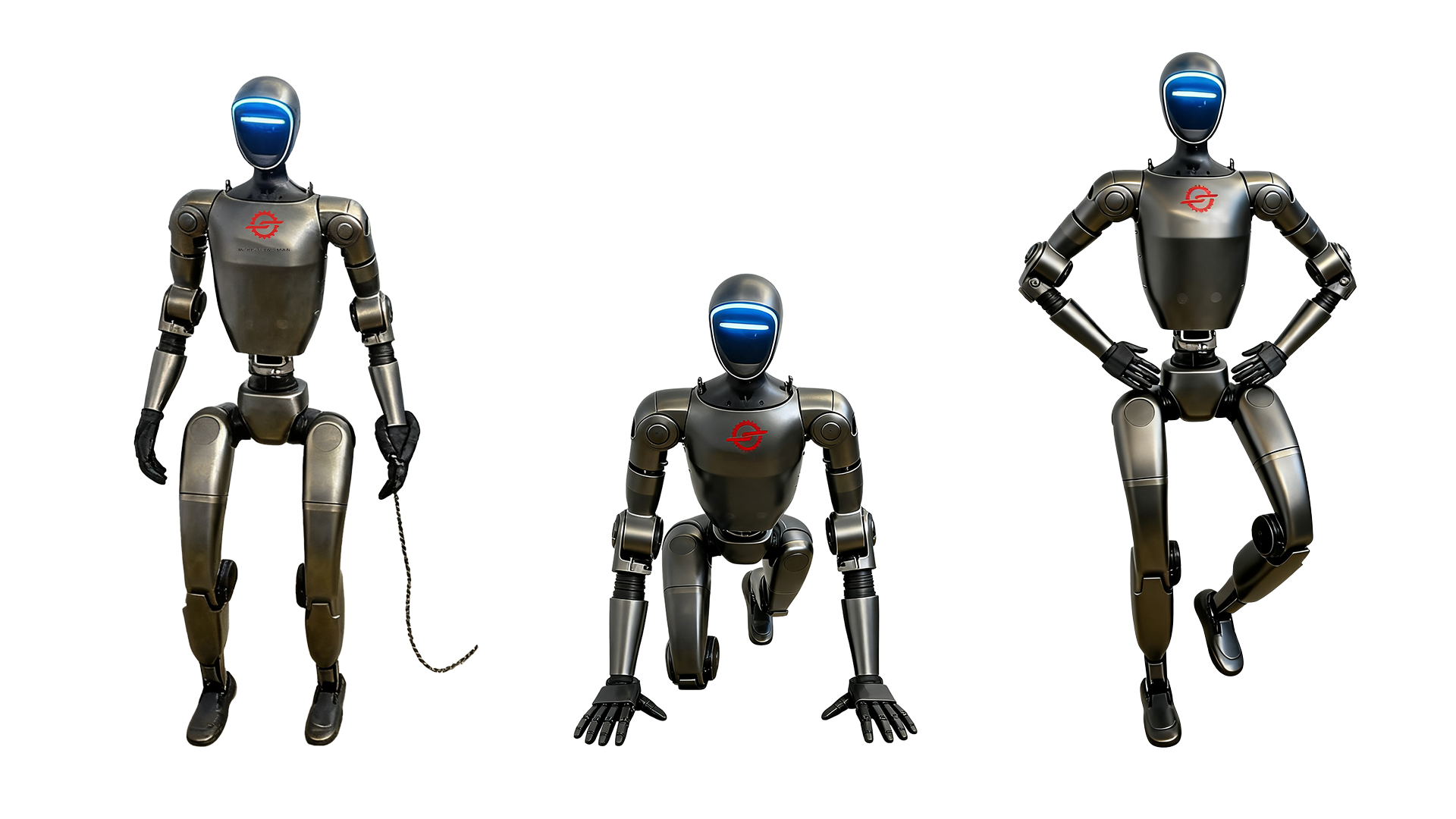

Case Study Humanoid Robot Joint Module Rotor Support

In a recent project we undertook the customization of rotor supports for humanoid robot walking joints. The reality of this component is that wall thickness is compressed to the absolute limit to achieve maximum response speed while using high strength aerospace aluminum. Any slight stress release during machining causes radial runout issues which directly leads to motor module noise or even total failure.

We did not start with immediate machining but instead used finite element analysis to simulate the impact of tool paths on the structure. During operation we utilized multi-axis linkage to reduce multiple setups into a single process effectively eliminating cumulative errors caused by repositioning. The final delivered rotor supports achieved micron level co-axiality and increased heat dissipation surface area through optimized tool paths. This case demonstrates that a well-thought-out custom machining plan is essential for ensuring the performance of cutting-edge products.

Factory Capabilities Supporting Delivery

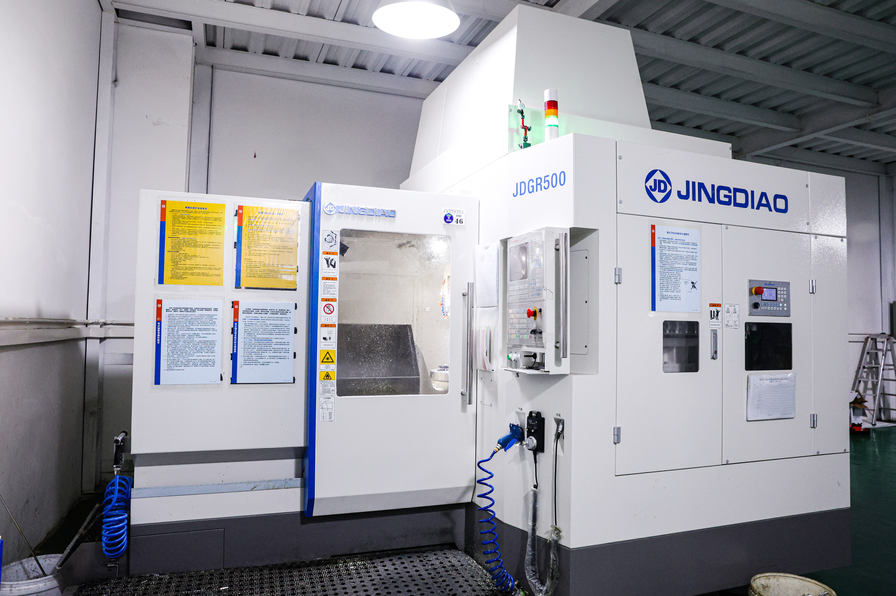

The successful delivery of complex components like the rotor support is backed by our high dynamic 5 axis machining centers and climate controlled metrology system. These precision hardware assets ensure stable thermal displacement compensation during continuous machining which is fundamental to maintaining micron level coaxiality. We utilize high precision CMM digital reports instead of subjective judgment to ensure every customized part aligns with design facts.

Our technical core lies in transforming over a decade of thin walled part machining experience into standardized processes. By controlling deformation through self-developed fixture systems and specific cutting parameters we rapidly replicate the success of rotor supports for demanding needs in semiconductor and aerospace sectors. Our full process management from raw material sourcing to final shipment provides solid quality stability for large scale customization requirements.

If you have relevant precision machining requirements please upload your design drawings to receive a detailed quote.
